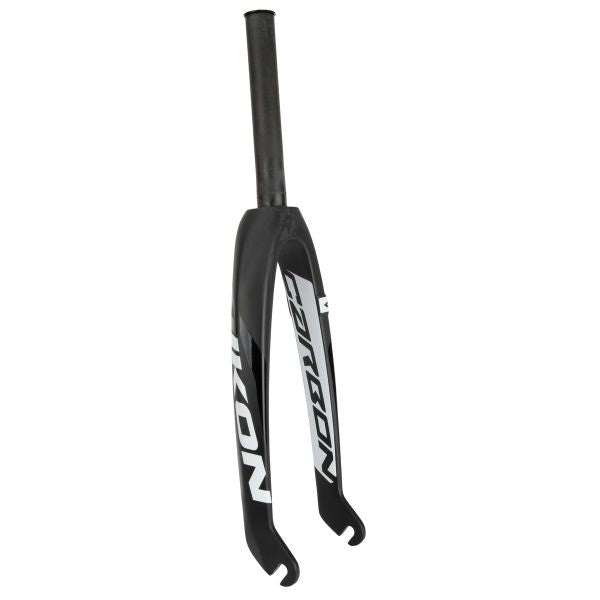

IKON Carbon Fork MINI/JUNIOR 20" 10MM

The IKON 1” fork is the perfect BMX race fork for young BMX racers. It features a fully integrated Toray UD carbon steer tube and full Toray UD carbon construction, including 10mm carbon dropouts, making it one of the lightest forks available for BMX racing. The fork also includes a 7075T6 alloy lock cap and an integrated threaded alloy insert in the steer tube for added durability.

The IKON 1” fork is available in four color options with glossy graphics on a natural matte carbon finish: Grey/White, Black/White, Red/White, or Blue/White.

Key Features:

• Unique tapered fork legs with embossed details
• 1” full Toray UD carbon steer tube, 165mm length
• 305mm axle-to-crown measurement
• 28mm dropout offset with 10mm carbon dropouts
• Lightweight at 304 grams (10.7 oz)
• 7075T6 alloy top-cap weighs only 8 grams (0.3 oz)
• Rider weight limit: 99 lbs (45 kg)
• Maximum axle tightening torque: 6 N.m
• Compatible with 1” internal diameter headsets (check frame specifications for correct sizing)

Why IKON Stands Out: Each IKON fork is hand-laid with natural Toray UD carbon for superior strength, resulting in a unique, non-uniform carbon pattern and matte finish that varies from fork to fork. This distinctive carbon design ensures the IKON fork delivers both performance and style, unlike traditional carbon forks.

Installation Torque Specifications: For proper installation, use a torque wrench and tighten the IKON fork to 5Nm. Over-tightening the stem's side bolts can damage the carbon steer tube, so handle with care during setup.

The IKON 1” fork is engineered for ultimate performance and durability, making it the ideal choice for BMX racing.
