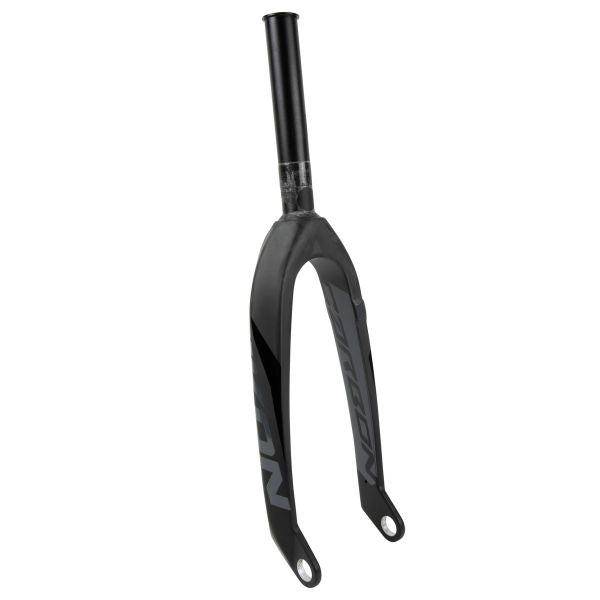

IKON EXPERT/PRO 20" 20MM 1-1/8" CARBON FORK

IKON now offers an Expert/Pro 1-1/8” full steer tube fork option designed for 20” BMX frames. The IKON Pro 1-1/8” fork maintains the same sleek design as the tapered version but features a full 7075-T6 alloy steer tube and 20mm CNC-machined aluminum dropouts for enhanced durability and performance.

Specifications:

• Material: Toray UD Carbon fiber with a matte natural hand-laid finish
• Steer Tube Material: 7075-T6 aluminum, 7mm thickness
• Steer Tube Type: 1-1/8" threadless
• Integrated Fork Race: Built-in for 45-degree bottom bearing, no additional race required
• Steer Tube Length: 172mm
• Dropouts: CNC-machined 6061-T6 aluminum
• Dropout Axle: 20mm thru-axle (112mm length recommended); optional adapters for 20mm to 10mm/3/8 available
• Axle-to-Crown Length: 305mm for 20" wheels
• Offset: 31mm
• Weight: 533 grams (19.4 oz or 1.2 lbs) without top cap

Why Choose the IKON Pro Fork:

The IKON Pro fork is uniquely crafted from hand-laid Toray UD carbon for optimal strength and performance, giving each fork a distinct non-uniform carbon pattern and matte finish. This ensures every fork stands out with its own look while delivering the high-quality performance BMX racers need.

The IKON Pro 1-1/8” fork is the ideal choice for Expert/Pro riders seeking a lightweight, durable fork for high-performance BMX racing.

For use with a 20mm Axle - Suggested Lenght 114, not included. Excess Front Axle

Optional 20mm to 10mm / 3/8 adapters available
