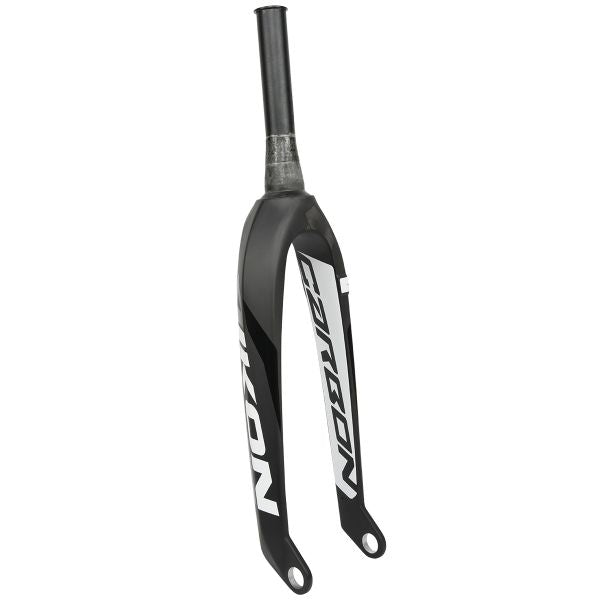

IKON PRO 24" 20MM TAPERED BMX CARBON FORK

IKON 24” Tapered Carbon Pro Fork Features:

The IKON 24” Tapered Carbon Pro Fork is designed for high-performance BMX racing, offering a perfect balance of strength, lightweight construction, and unique design elements to enhance your ride.

Key Features:

• Toray UD Carbon Fiber Structure: This fork features tapered legs and an oversized crown that seamlessly integrates with modern oversized headtubes. The rear of the crown incorporates an aerodynamic racing spoiler for enhanced airflow and speed.
• 7076 T6 Aluminum Steer Tube: 6mm thick and tapered from 1-1/8" to 1.5" at the base. It includes an integrated fork crown race for 45-degree bearings, eliminating the need for an additional headset crown race and saving weight.
• Steer Tube Length: 173mm. The aluminum steer tube is bonded and keyed into the carbon crown for extra durability.
• IKON Alloy Top Cap/Compressor Bolt: Constructed from 7075T6 alloy, M18 size, with internal steer tube threads, removing the need for additional fork/stem locks.
• Axle to Crown Measurement: 353.5mm for 24" wheels.
• Tapered Fork Legs Design: Unique embossed features and a custom-designed fork crown add a sleek, aerodynamic look.
• Reinforced 20mm Dropouts: Made from 6061 T6 alloy, these dropouts are bonded and keyed into the carbon legs for strength. IKON 10mm black anodized alloy axle adapters are available separately.
• Dropout Offset: 31mm.
• Weight: 677g (23.88oz) with the top cap, 662g (23.35oz) without the top cap.

Aesthetic and Finish:

IKON forks feature a matte UD carbon finish with glossy water-applied graphics. The hand-laid Toray UD carbon provides each fork with a unique, non-uniform pattern and matte finish, setting it apart from traditional carbon fiber designs.

For use with a 20mm Axle - Suggested Lenght 114mm Front 20mm axle not included - We suggest to use Excess 20mm Front Axle

Optional 20mm to 10mm / 3/8 adapters available
