Inspyre Concorde V3 BMX Race Frame

Inspyre Concorde V3 BMX Race Frame

Redesigned. Refined. Race-Ready.

The Inspyre Concorde V3 Frame is the latest evolution in high-performance BMX racing. Developed over two years with the Inspyre Factory Team, the V3 sets a new benchmark in aluminum race frame technology—now 15% lighter and stiffer than its predecessor.

Built from hydroformed 6061-T6 aluminum tubing, the Concorde V3 is engineered for aggressive sprints, maximum power transfer, and precise handling. Every tube—except the down tube—has been redesigned for optimized strength, weight, and aerodynamics. The oversized bottom bracket junction and wide rear stays deliver incredible lateral stiffness, giving you the edge out of every gate.

From juniors to elite riders, this frame adapts to your needs. Youth sizes feature lighter, more flexible tubing for smaller riders, while adult frames are built for maximum stiffness and speed.

Standout Features:

• ✅ 15% lighter than the Concorde V2 – Reduced weight without compromising strength

• ✅ Hydroformed 6061-T6 aluminum tubing – Engineered for stiffness and power

• ✅ CNC-machined hourglass head tube – IS 45x45 standard, optimized for lower cockpit height

• ✅ SWELL V2 dropout system – 25 mm adjustment range with 7075-T6 alloy inserts

• ✅ Disc brake compatible – Post mount for 120 mm (140 mm possible with +20 mm spacer)

• ✅ Includes 15 mm to 10 mm adapters – 15 mm thru-axle sold separately

• ✅ Compatible with Inspyre ADS chain tensioners

The Concorde V3 also features ultra-smooth flat welds, premium paint with undercoat decals, and a race-proven geometry that maximizes pedaling efficiency and responsiveness on track.

Specifications:

• Material: 100% Hydroformed 6061-T6 Aluminum

• Brake Compatibility: Post Mount (120 mm or 140 mm with adapter)

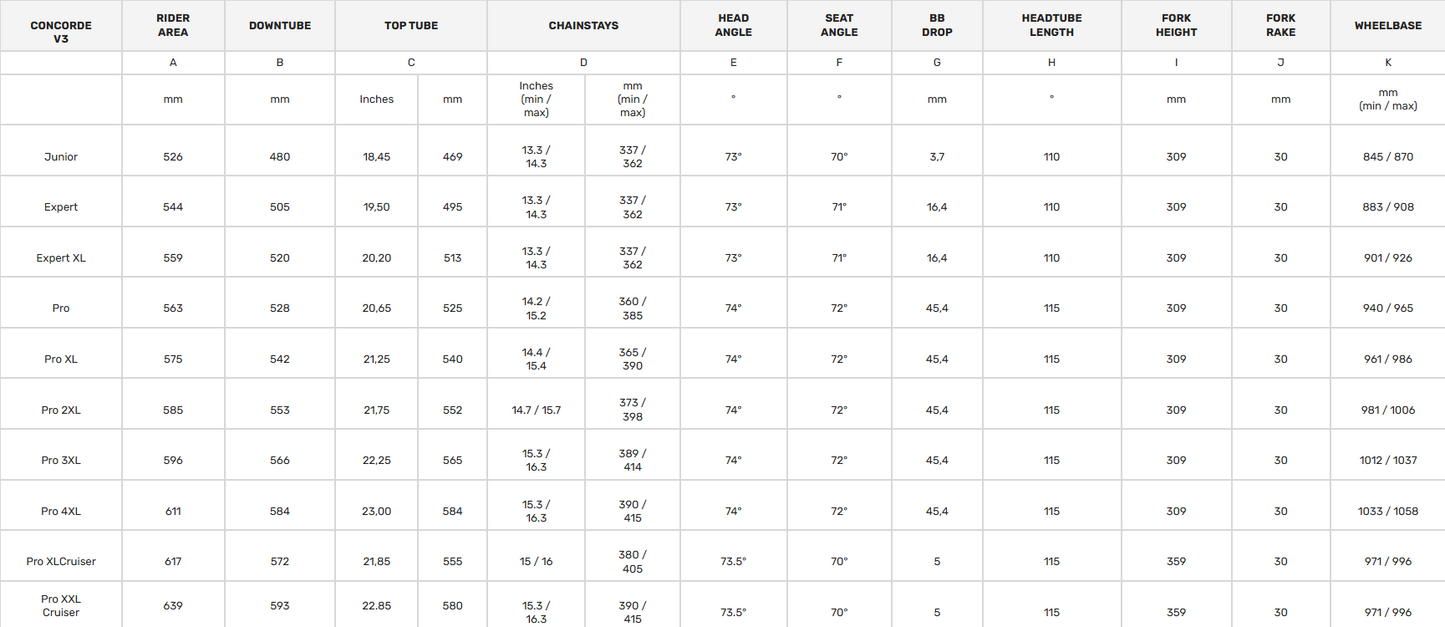

• Bottom Bracket: BSA 68 or BB86 (based on size – see chart)

• Dropout: SWELL V2 with 25 mm adjustment range

• Head Tube: IS 45x45 standard – 110 mm (Junior), 115 mm (Adult)

• Chain Tensioner: Compatible with Inspyre ADS system

• Includes: 15 mm to 10 mm dropout adapters

• Note: 15 mm thru-axle sold separately

Push Your Limits with the Inspyre Concorde V3
Whether you're racing at the national level or gearing up for your first podium, the Concorde V3 is built to take your performance to the next level.
