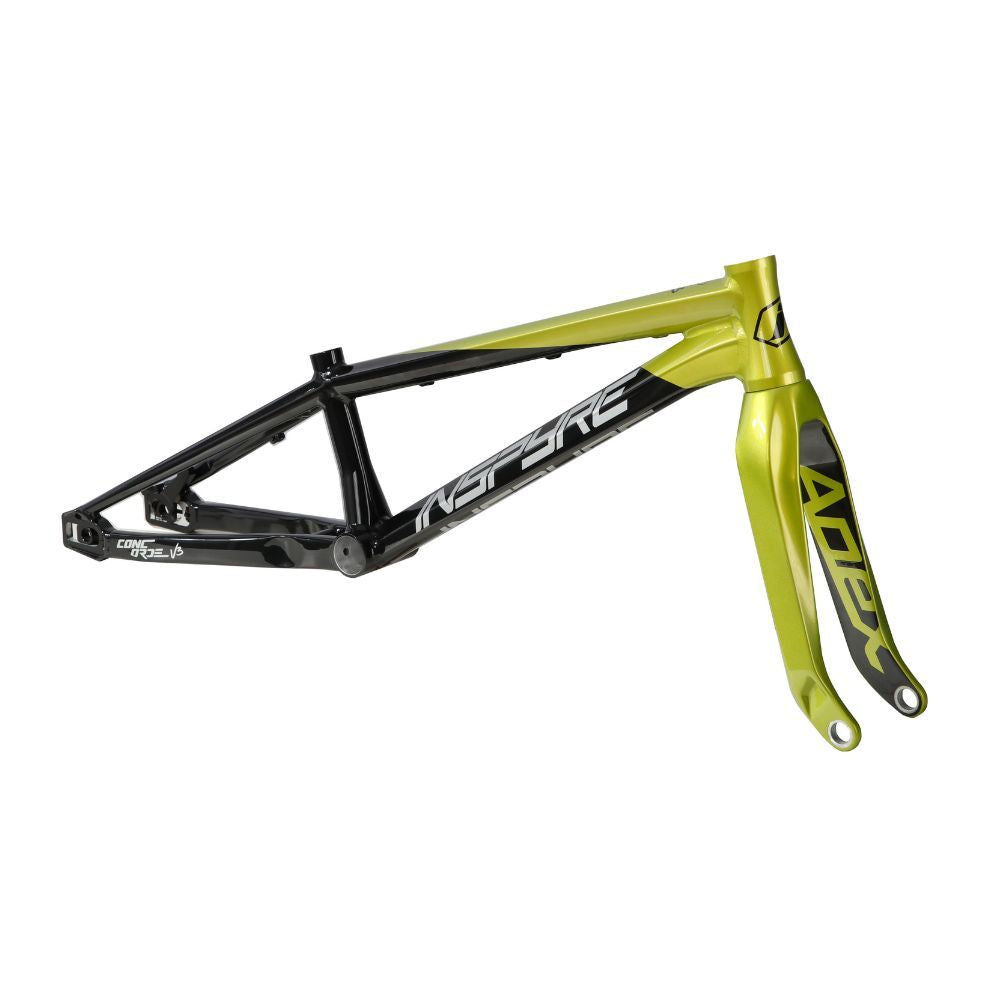

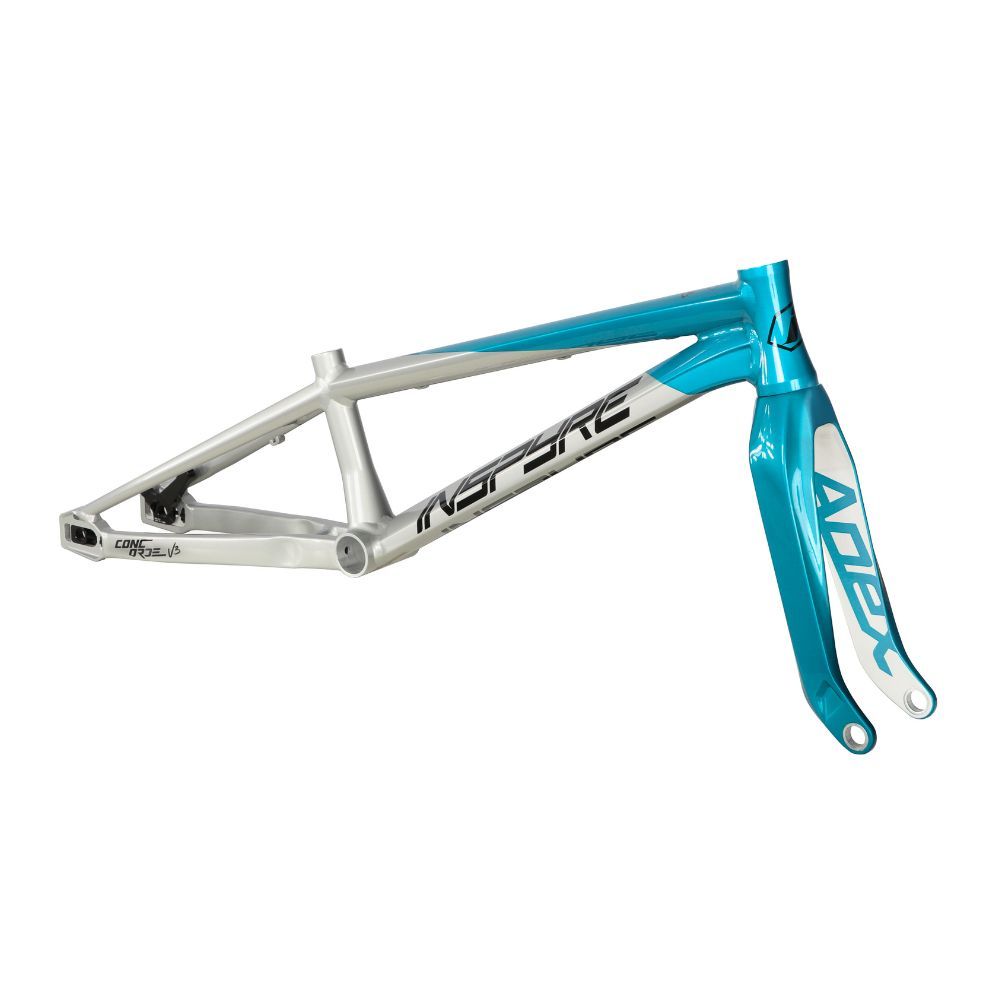

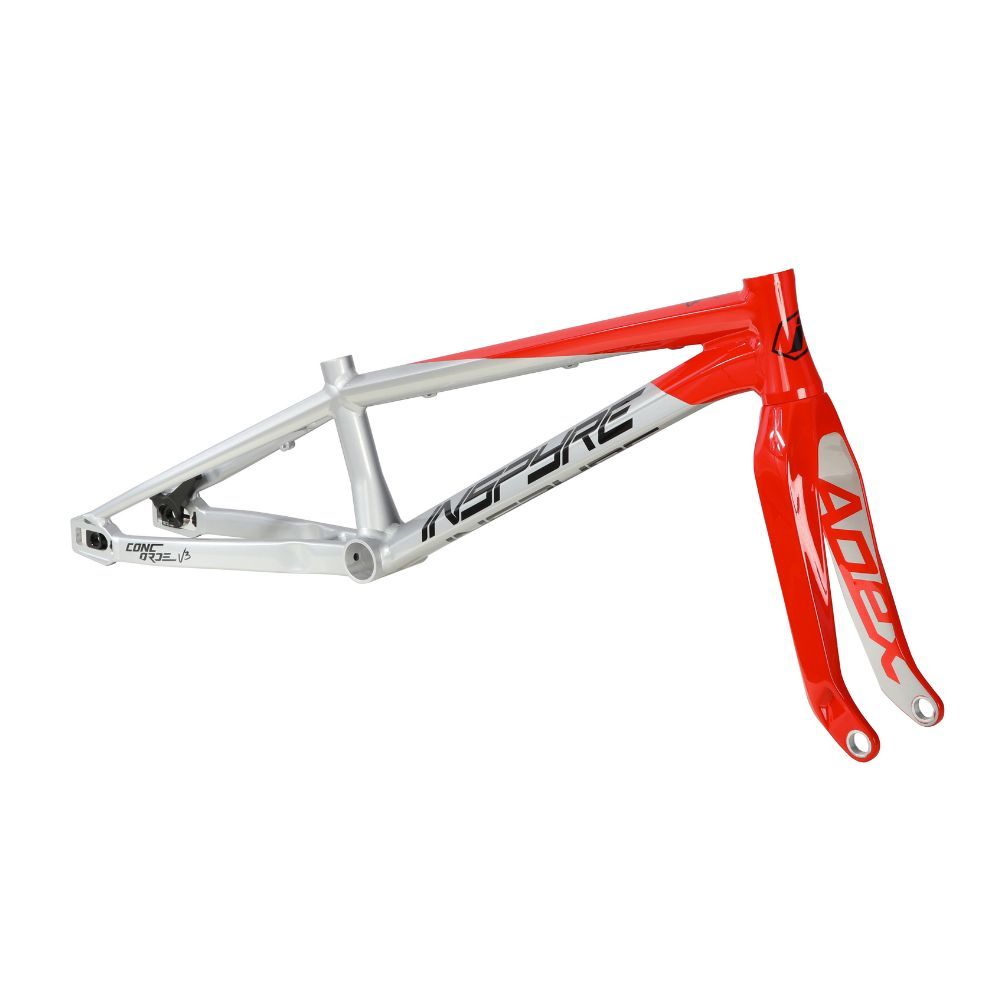

Inspyre Concorde V3 Frame & Fork Kit

Inspyre Concorde V3 Frame & Fork Kit – Lightweight, Precision-Built BMX Race Frame

The Inspyre Concorde V3 Frame/Fork Kit is the pinnacle of two years of research, track testing, and performance tuning. Reengineered from the ground up, the Concorde V3 is one of the most advanced aluminum BMX race frames on the market—designed for serious racers who demand speed, power transfer, and high-end craftsmanship.

Crafted with all-new hydroformed tubing (except the down tube), the frame is engineered to strike the perfect balance of lightweight performance, strength, and aerodynamic efficiency. A standout feature is the oversized junction at the down tube, bottom bracket, and rear stays—engineered for unmatched stiffness and lateral rigidity, translating into exceptional power transfer with every pedal stroke.

This next-generation frame features variable wall thickness tubing, making it 15% lighter than the previous Concorde V2, without compromising strength or durability. Enhanced stiffness and reduced frame flex maximize energy output, giving riders a faster, more responsive feel on the track.

Aesthetics are as refined as performance. Flat welds, a premium paint finish, and undercoat decals deliver a clean, high-end look. The low-profile CNC-machined hourglass head tube (IS 45x45 standard) is designed to drop the front end for a more aggressive race position. Paired best with Pride Racing headset bearings, the head tube sits at 110mm (Junior) or 115mm (Adult).

Key upgrades include:

• Oversized rear stays and a widened bottom bracket shell for unmatched rear-end stiffness.

• Custom tubing profiles in Junior, Expert, and Expert XL sizes—lighter and tuned for younger riders.

• Updated SWELL V2 dropout system featuring 25mm adjustment range, 7075-T6 internal alloy plates, and an easy-to-use wheel removal setup.

• Disc brake ready, using a post-mount for 120mm rotors (140mm optional with +20mm spacer).

• 15mm thru-axle compatible (sold separately) with 15mm to 10mm adapters included.

• Compatible with Inspyre’s ADS chain tensioner for precise wheelbase adjustments regardless of gear setup.

Product Highlights:

• Frame Material: 100% 6061-T6 Aluminum

• Hydroformed Multi-Thickness Tubing

• Brake Compatibility: Post Mount Hydraulic Disc Only

• Bottom Bracket: BSA 68 or BB86 (size-dependent)

• Includes 15mm to 10mm Adapter & Disc Mount Hardware

• 15mm Thru-Axle Sold Separately

• Compatible with ADS Chain Tensioners

Built for Performance. Designed for Racers.

Whether you're chasing podiums or shaving milliseconds off your lap time, the Inspyre Concorde V3 offers elite-level performance in a lightweight, precision-crafted package.
