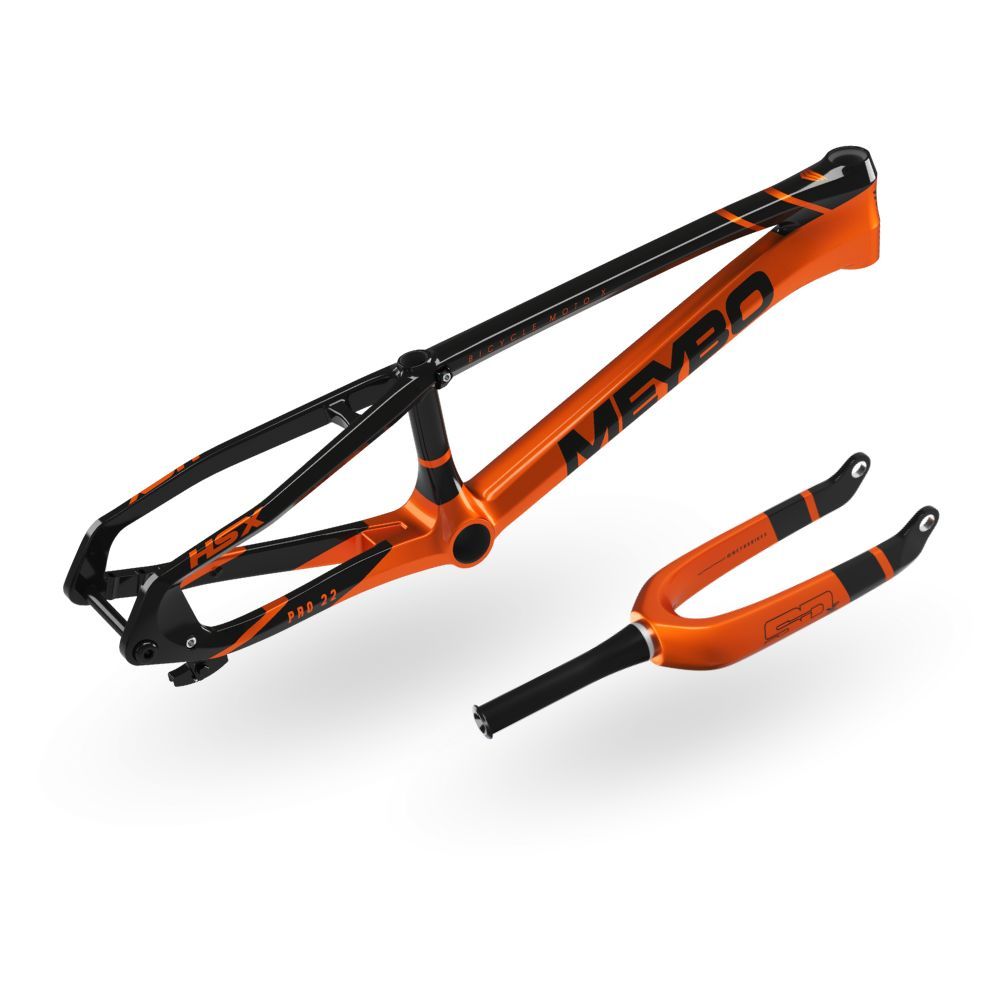

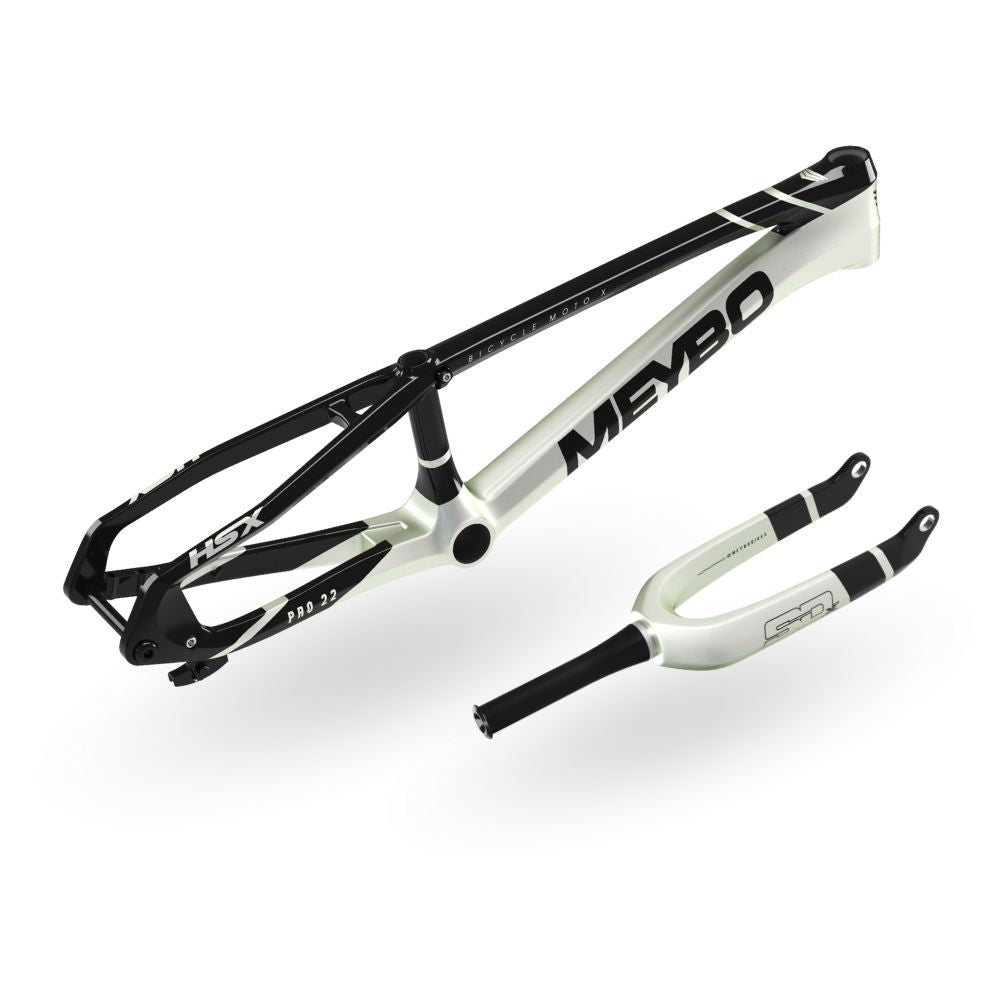

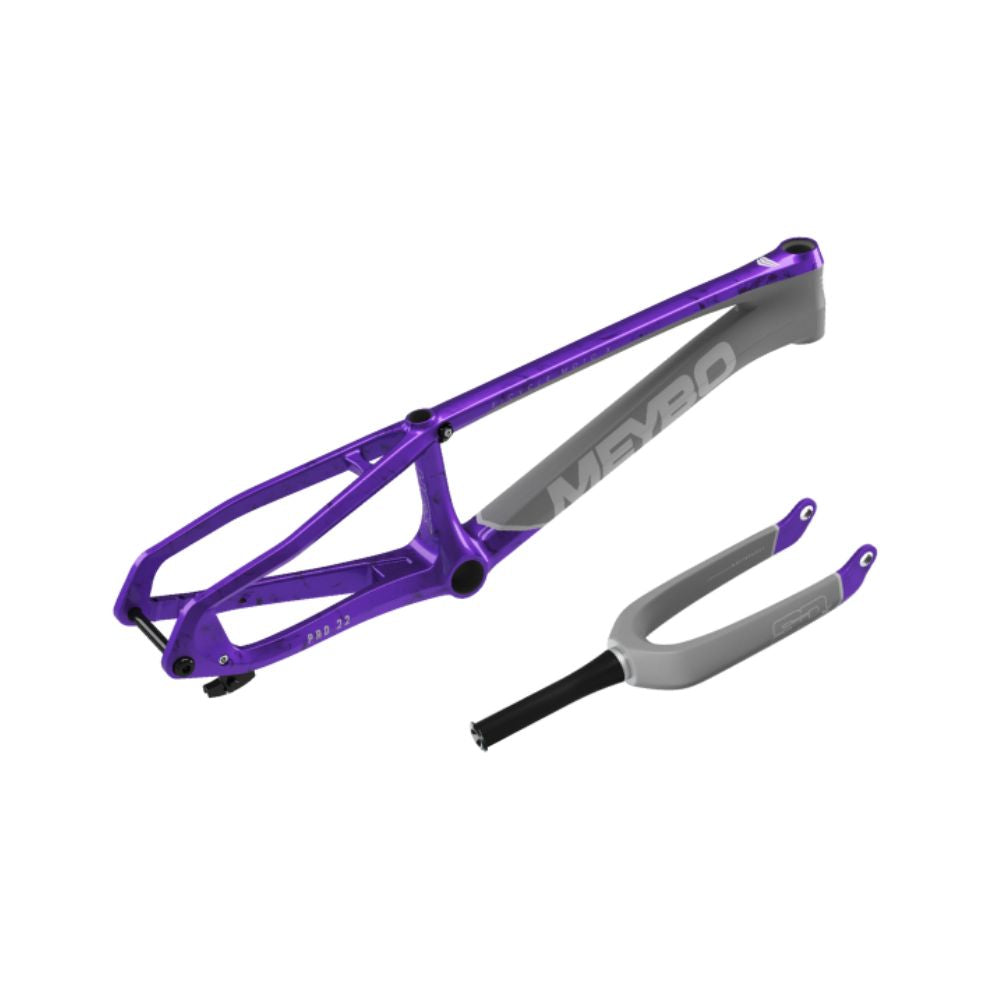

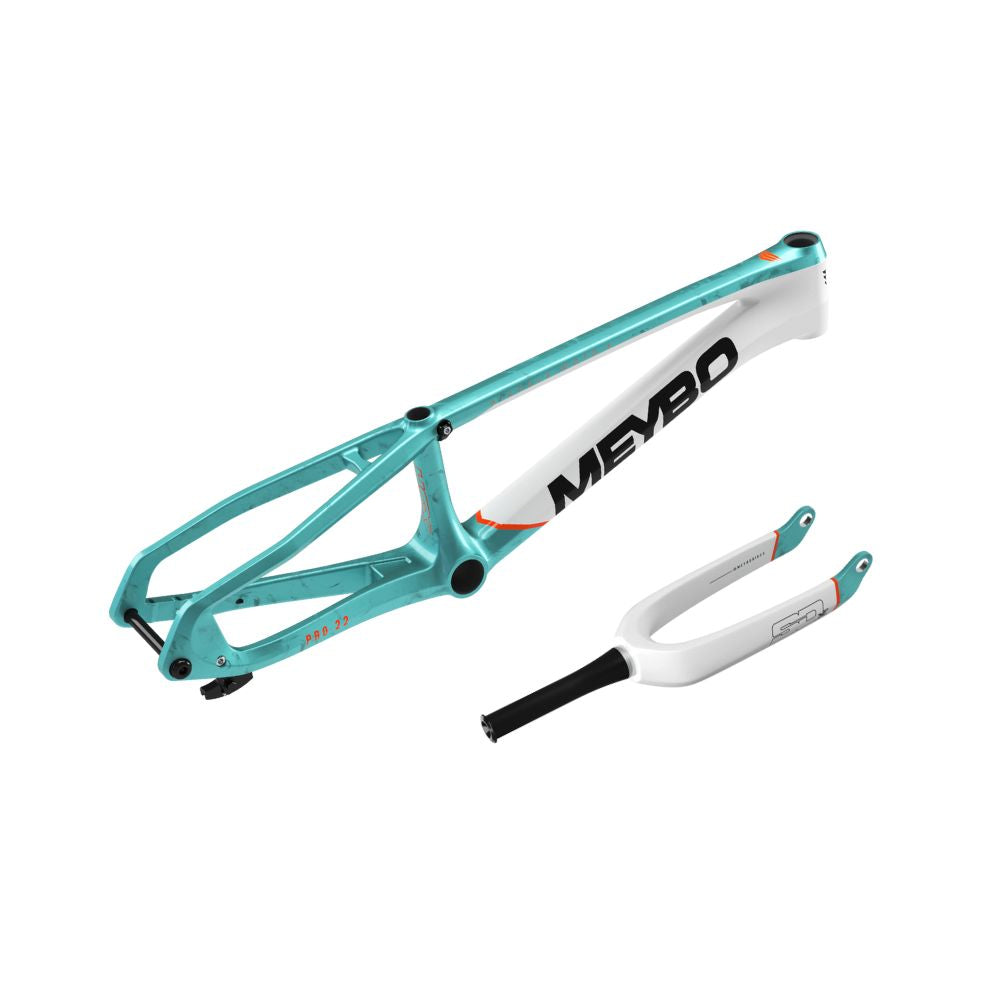

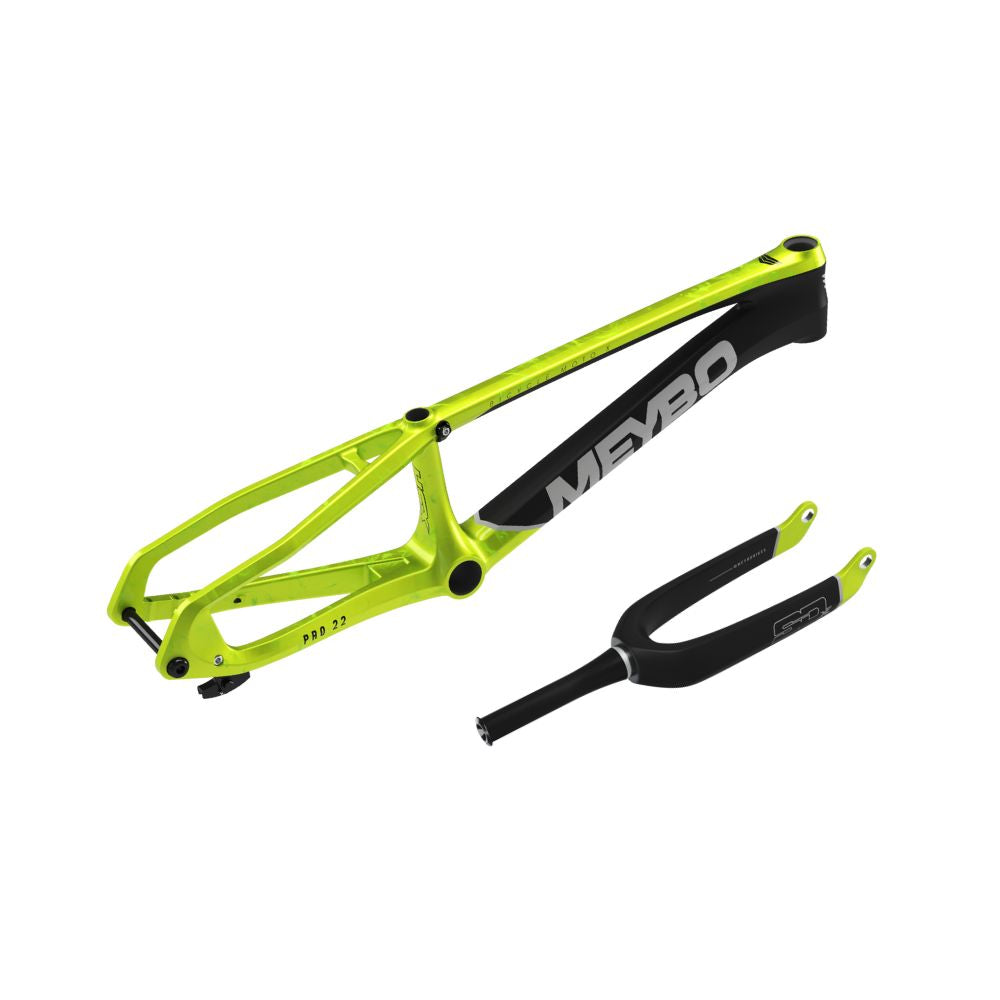

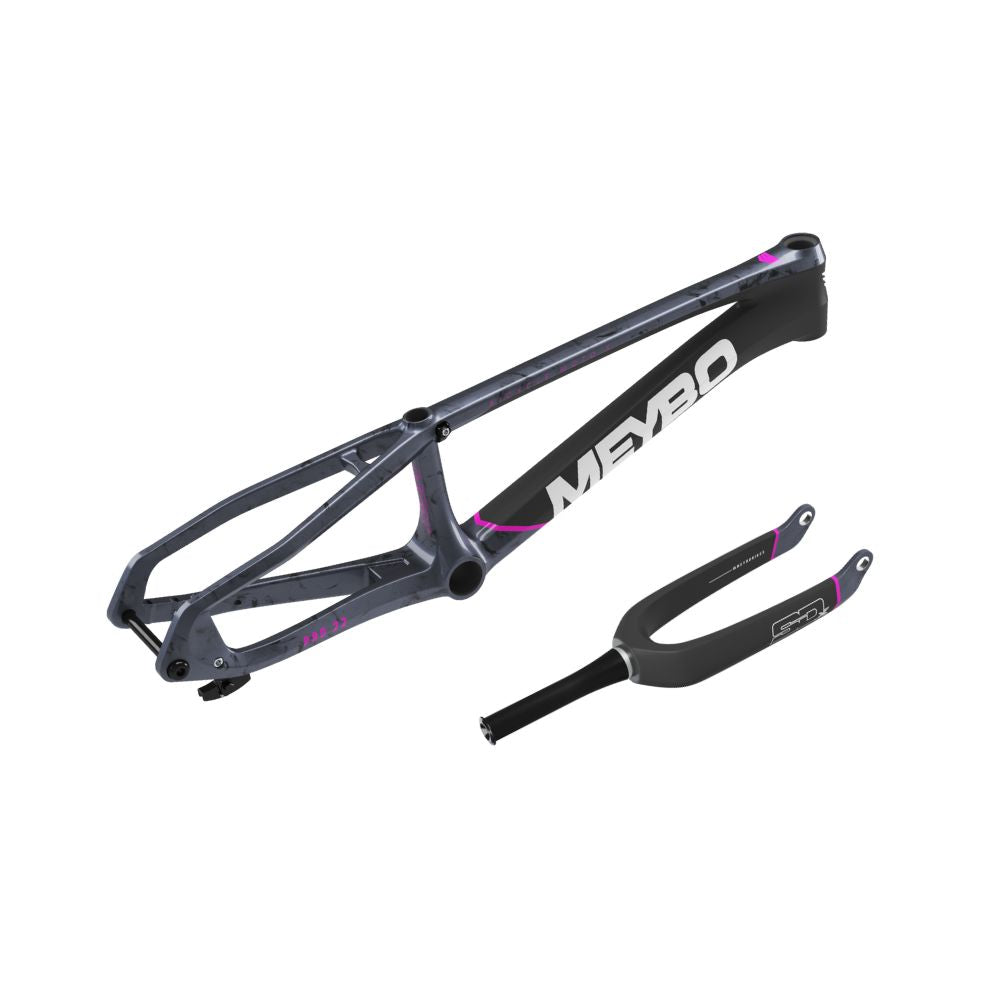

Meybo HSX Carbon BMX Race Frame + Fork Kit

MEYBO HSX CARBON 2025 FRAME/FORK KIT

The Meybo HSX Carbon 2025 Frame/Fork Kit is the ultimate BMX racing setup for serious competitors. Featuring the Meybo HSX Carbon frame paired with the SD Components Carbon V2 fork, this high-performance kit sets the standard for lightweight and rigid race bikes. Designed with sleek aesthetics and cutting-edge technology, it’s engineered to deliver unmatched performance on world championship tracks.

Meybo HSX Carbon Frame Features:

• Material: 100% Toray T800 Carbon for maximum lightness, rigidity, and stability
• Brakes: Flat-mount caliper with 120 mm disc (for optimized braking power)
• Crankset Compatibility: Suitable for 24 mm or 30 mm spindle
• Bottom Bracket Compatibility: BB86 or BB386 (depending on size)
• Seatpost Compatibility: 25.4 mm or 27.2 mm (depending on size)
• Chain Tensioner: Integrated on rear stay for smooth transmission
• Seat Clamp: Integrated into the frame for a clean design
• Rear Axle: 15 mm thru-axle made from 7005 Aluminum, CNC machined for stiffness
• Wheel Compatibility: Compatible with OS20 wheels
• Included: 3 spacers (1, 2, 4 mm) to align the brake disc

SD Components Carbon V2 Fork Features:

• Material: Carbon legs and 7000-series Aluminum steerer for strength and weight savings
• Wheel Size: 20" (406)
• Axle Size: 20 mm
• Steerer Diameter: 1-1/8" or 1-1/8" to 1.5" tapered ( depending on size )
• Fork Height: 310 mm
• Offset: 30 mm
• Fork Dropout Width: 8 mm
• Weight: 680 g (including compression bolt)
• Finish: Glossy

Recommendations:

• Installation: The frame should be installed only by a professional bicycle mechanic to avoid damage and void the warranty.
• Post-Crash Inspection: Carbon fiber frames may conceal damage; after any crash, have the frame inspected for damage.
• Seatpost: Designed for seatposts with a maximum length of 150 mm to avoid potential frame damage.

The Meybo HSX Carbon Frame/Fork Kit offers advanced technology and elite-level performance for riders seeking the ultimate in BMX racing gear. With optimized geometry, rigidity, and stability, it is the perfect choice for tackling high-speed, competitive tracks.
