Meybo HSX Carbon G2.4 BMX Race Frame

Meybo HSX Carbon Frame Only Or Frame + Fork Kit

The Meybo HSX Carbon is Meybo's high-performance BMX race frame, developed for riders competing at the highest level of BMX racing.

Constructed from Toray T800 carbon fibre, the HSX Carbon combines low weight, high stiffness and stability with geometry developed around the demands of modern BMX racing and World Cup tracks.

Available from January 2027

The HSX Carbon is available from RaceBMX.sg in two configurations:

Frame Only

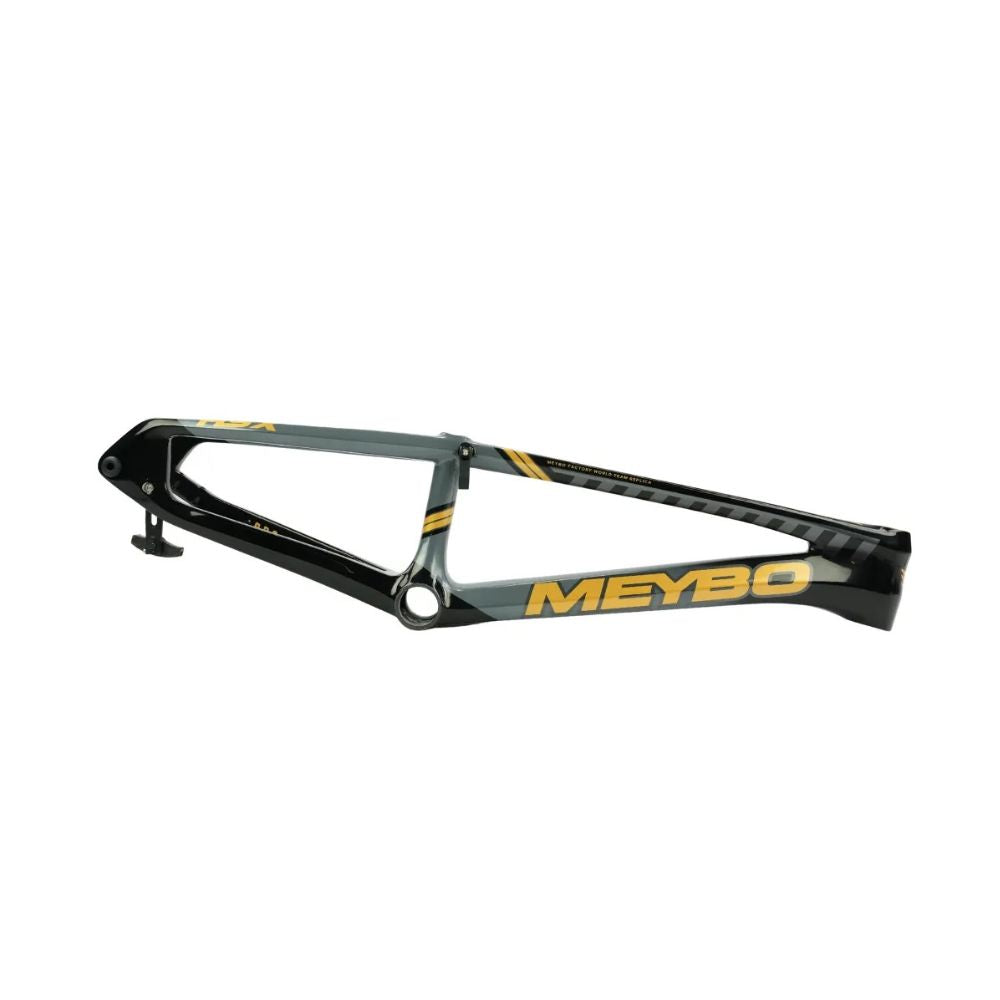

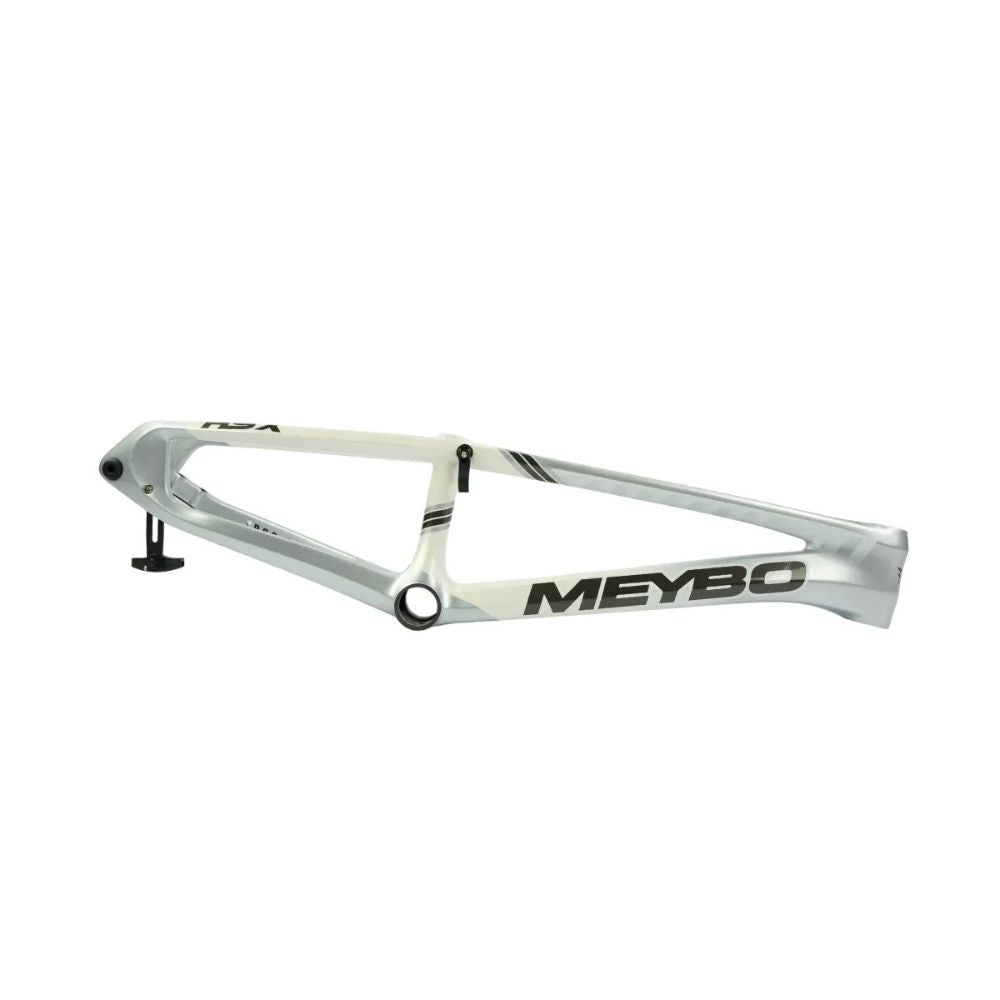

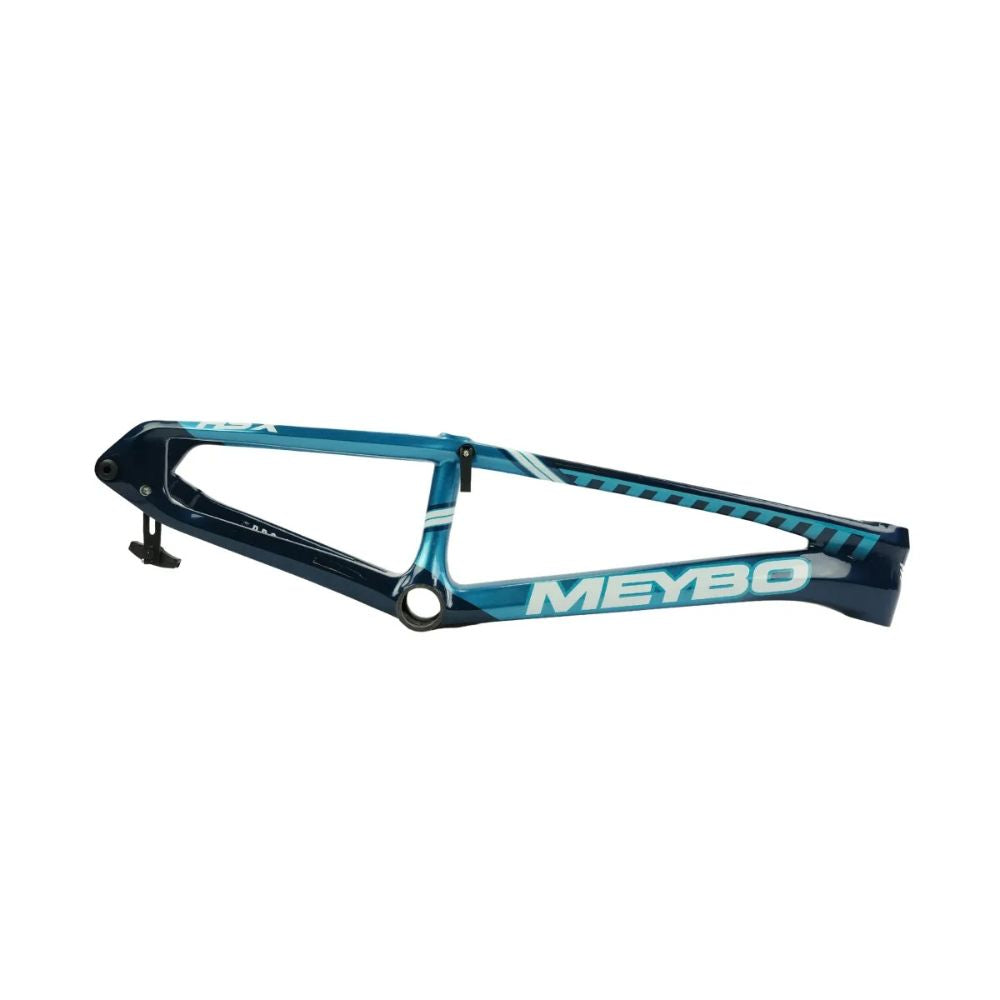

Meybo HSX Carbon BMX race frame

Frame + Fork Kit

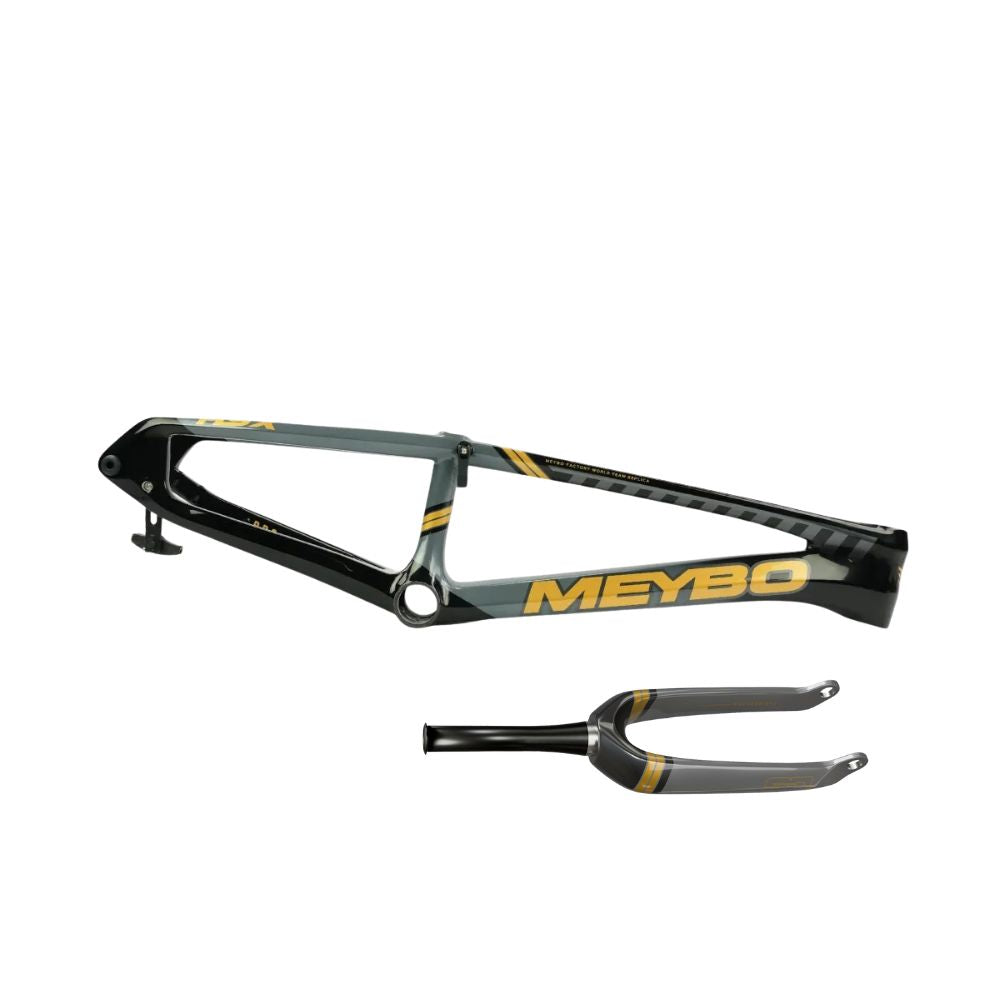

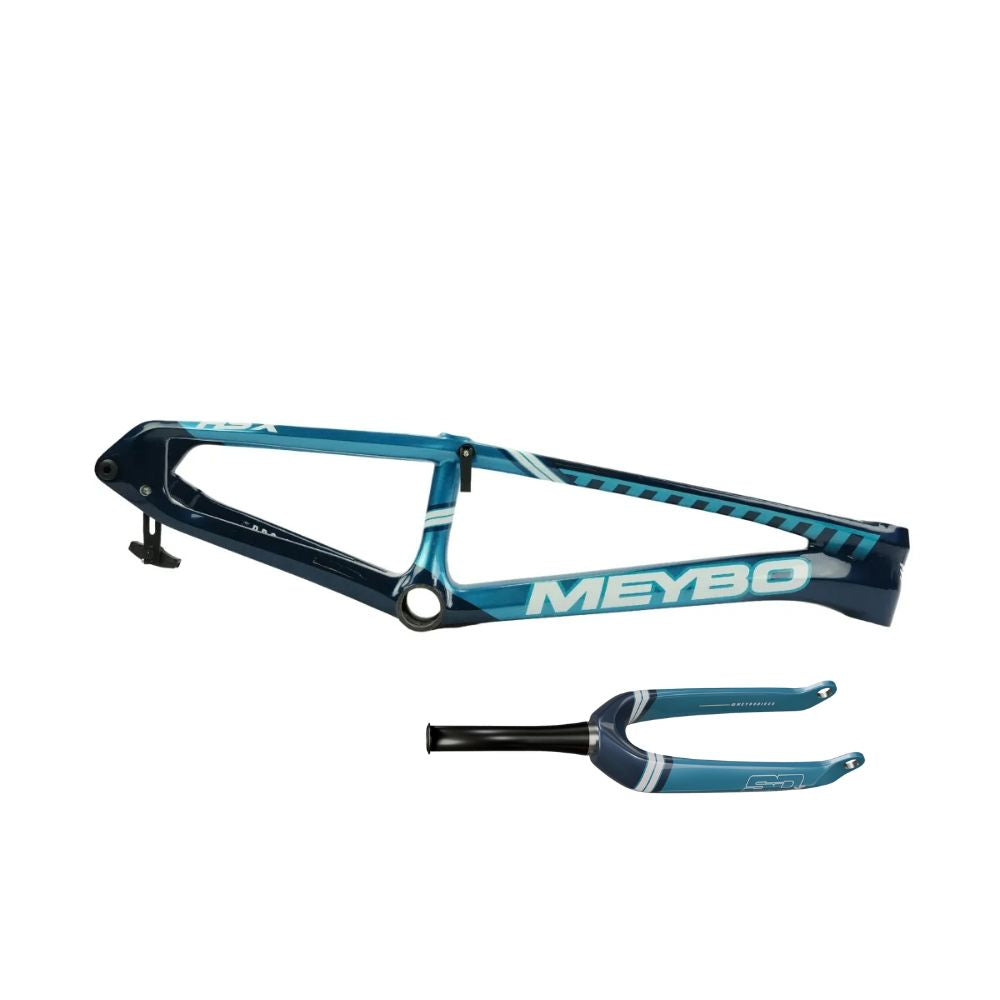

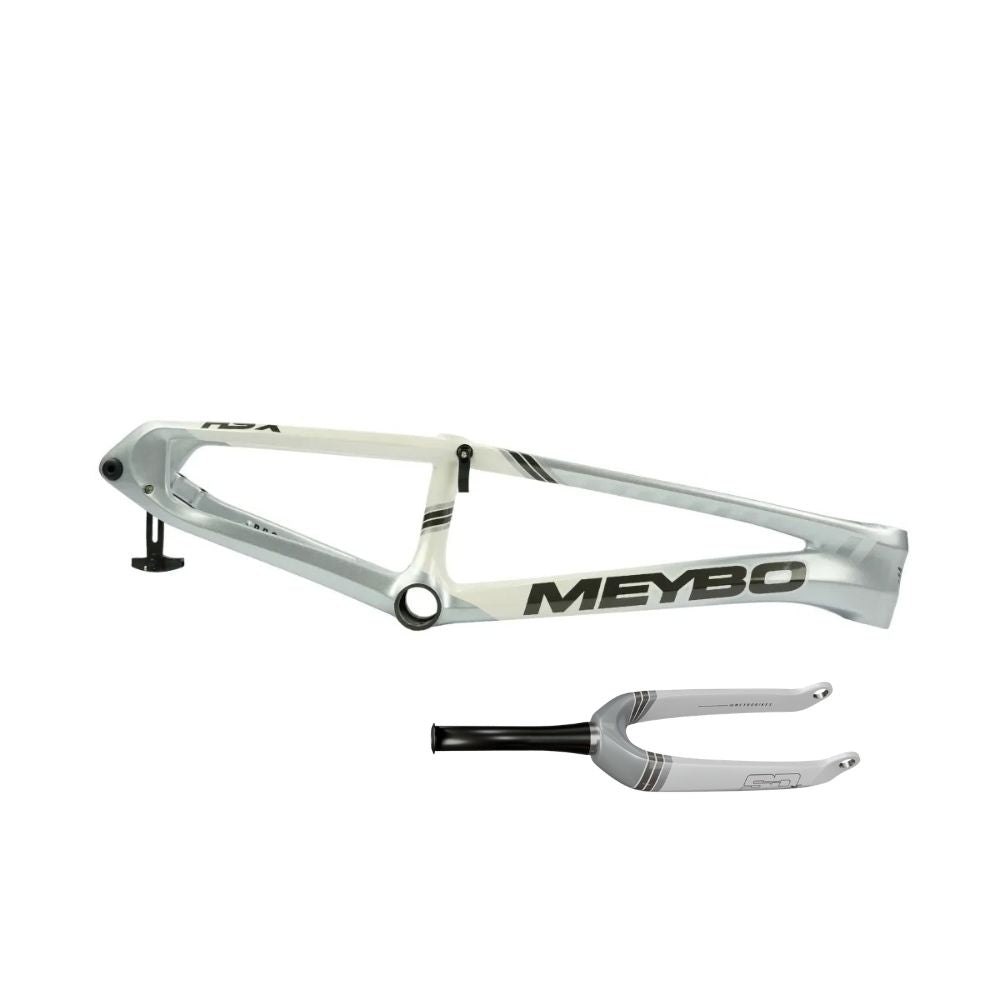

Meybo HSX Carbon frame with SD Components Carbon V2 Fork

Both options are designed for riders building a high-performance BMX race bike, whether for competition in Singapore, Asia or international BMX racing.

RaceBMX.sg ships BMX frames, forks and racing components worldwide, allowing international riders and teams to order the Meybo HSX Carbon from Singapore.

Meybo HSX Carbon BMX Race Frame

The HSX Carbon represents Meybo's high-performance carbon BMX race frame platform.

Made from 100% Toray T800 carbon fibre, the frame is designed to provide a combination of low weight, stiffness and stability. Its race-focused geometry is developed around high-speed BMX tracks, providing a balance between responsive handling and stability through fast sections and technical corners.

The HSX Carbon is designed for riders who demand a performance-focused frame for competitive BMX racing.

Its carbon construction and integrated components create a clean, refined race bike platform while reducing unnecessary complexity around the drivetrain and rear brake system.

World Cup Race Geometry

The Meybo HSX Carbon uses geometry developed with World Cup BMX racing in mind.

The frame is designed to provide precise handling while maintaining stability at high speed, making it suitable for competitive BMX racing and riders who need predictable handling through fast straights, jumps and technical corners.

The combination of carbon construction and race-focused geometry creates a responsive platform designed around the demands of modern BMX race tracks.

Toray T800 Carbon Construction

The HSX Carbon uses 100% Toray T800 carbon fibre.

T800 carbon construction allows Meybo to create a lightweight and stiff BMX race frame while maintaining the structural characteristics required for BMX racing.

The frame is designed to balance:

• Low weight
• High stiffness
• Stability
• Precise handling
• Efficient power transfer

This makes the HSX Carbon a suitable choice for riders building a high-performance BMX race bike.

Flatmount Disc Brake

The HSX Carbon uses a Flatmount rear brake caliper interface designed specifically for a 120 mm disc.

The Flatmount configuration provides a clean integration between the frame and rear disc brake system while keeping the braking system close to the frame.

The frame is supplied with three brake disc alignment spacers measuring:

• 1 mm
• 2 mm
• 4 mm

These spacers allow the brake disc to be correctly aligned during installation.

120 mm disc only.

15 mm Rear Thru-Axle

The HSX Carbon uses a 15 mm rear thru-axle designed to provide a stiff and secure rear wheel connection.

A 7005 aluminium thru-axle, fully CNC-machined, is supplied with the frame.

The frame is also compatible with 24 mm or 30 mm axle configurations, depending on the applicable component setup.

Integrated Chain Tensioner

The HSX Carbon features an integrated chain tensioner built into the rear dropout.

This system helps maintain consistent chain tension and rear wheel positioning when adjusting gearing or removing and reinstalling the rear wheel.

The integrated design keeps the rear of the frame clean while providing precise drivetrain adjustment for BMX racing.

Integrated Seatpost Clamp

The HSX Carbon features an integrated seatpost clamp, creating a clean transition around the seat tube while reducing the need for an external clamp.

Seatpost compatibility depends on frame size, with the frame designed for either 25.4 mm or 27.2 mm seatposts, depending on size.

Bottom Bracket Compatibility

The HSX Carbon uses a size-specific bottom bracket configuration.

Depending on the frame size, the HSX Carbon is compatible with:

BB86

or

BB386

Please confirm the applicable bottom bracket standard for your selected frame size before purchasing.

Oversize OS20 Wheel Compatibility

The Meybo HSX Carbon is compatible with Oversize OS20 wheels.

This makes the frame suitable for riders using modern BMX race wheel configurations designed around the OS20 format.

SD Components Carbon V2 Fork

The Frame + Fork Kit includes the SD Components Carbon V2 Fork.

The SD Components Carbon V2 is constructed from carbon fibre and features a 7075-T6 aluminium steerer designed to provide a combination of low weight, stiffness and durability.

The fork is designed specifically for BMX racing, with the stiffness required for precise handling through corners, jumps and fast sections of the track.

The fork is included only with the Frame + Fork Kit variant.

Frame Only or Frame + Fork Kit

Choose the configuration that best suits your BMX race bike build.

Frame Only

Includes the Meybo HSX Carbon BMX race frame.

This option is suitable for riders who already have a compatible BMX fork or want to select their own fork separately.

Frame + Fork Kit

Includes:

• Meybo HSX Carbon frame
• SD Components Carbon V2 carbon fork

This option provides a matched high-performance frame and carbon fork combination for riders building a complete BMX race bike.

Meybo HSX Carbon Specifications

Specification	Details
Brand	Meybo
Model	HSX Carbon
Product Type	BMX Race Frame
Frame Material	100% Toray T800 Carbon
Rear Brake	Flatmount
Rear Rotor	120 mm only
Rear Axle	15 mm thru-axle
Rear Axle Material	CNC-machined 7005 Aluminium
Axle Compatibility	24 mm or 30 mm depending on configuration
Bottom Bracket	BB86 or BB386 depending on size
Seatpost	25.4 mm or 27.2 mm depending on size
Chain Tensioner	Integrated
Seatpost Clamp	Integrated
Wheel Compatibility	Oversize OS20
Brake Alignment	1 mm, 2 mm and 4 mm spacers supplied
Fork	SD Components Carbon V2 on Frame + Fork Kit
Fork Steerer	7075-T6 Aluminium

What's Included

Frame Only

• Meybo HSX Carbon BMX race frame
• Integrated chain tensioner
• Integrated seatpost clamp
• 15 mm CNC-machined 7005 aluminium rear thru-axle
• 1 mm, 2 mm and 4 mm brake disc alignment spacers

Frame + Fork Kit

• Meybo HSX Carbon BMX race frame
• SD Components Carbon V2 carbon fork
• Integrated chain tensioner
• Integrated seatpost clamp
• 15 mm CNC-machined 7005 aluminium rear thru-axle
• 1 mm, 2 mm and 4 mm brake disc alignment spacers

Important Compatibility Information

Before ordering the Meybo HSX Carbon, confirm the required components for your frame size and build.

Bottom bracket compatibility varies by frame size between BB86 and BB386.

Seatpost compatibility varies by frame size between 25.4 mm and 27.2 mm.

The rear brake system uses a Flatmount interface with a 120 mm disc only.

The frame is supplied with a 15 mm rear thru-axle.

Brake disc alignment spacers of 1 mm, 2 mm and 4 mm are supplied with the frame.

Meybo BMX Racing in Singapore

RaceBMX.sg supplies Meybo BMX race bikes, frames and components in Singapore, supporting riders building and upgrading high-performance BMX race bikes.

The Meybo HSX Carbon is suited to BMX racers looking for a Meybo carbon BMX race frame in Singapore, including riders competing locally and across Asia.

For international customers, RaceBMX.sg offers worldwide shipping on BMX race frames, forks and components, subject to destination and shipping service availability.

Frequently Asked Questions

What is the Meybo HSX Carbon?

The Meybo HSX Carbon is a high-performance carbon BMX race frame developed for competitive BMX racing.

What carbon fibre does the Meybo HSX Carbon use?

The frame is constructed from 100% Toray T800 carbon fibre.

Is the Meybo HSX Carbon available as a frame only?

Yes. The product is available as a Frame Only configuration.

Does the Meybo HSX Carbon come with a carbon fork?

The Frame + Fork Kit includes the SD Components Carbon V2 carbon fork. The Frame Only option does not include the fork.

What fork is included with the Meybo HSX Carbon frame and fork kit?

The Frame + Fork Kit includes the SD Components Carbon V2 Fork, which features a carbon construction and 7075-T6 aluminium steerer.

What rear brake does the Meybo HSX Carbon use?

The HSX Carbon uses a Flatmount rear brake interface designed for a 120 mm disc.

Does the Meybo HSX Carbon include a rear thru-axle?

Yes. The frame is supplied with a 15 mm CNC-machined 7005 aluminium rear thru-axle.

Does the Meybo HSX Carbon have a chain tensioner?

Yes. The frame features an integrated chain tensioner in the rear dropout.

What bottom bracket does the Meybo HSX Carbon use?

The required bottom bracket depends on frame size. The HSX Carbon uses either BB86 or BB386.

What seatpost size does the Meybo HSX Carbon use?

Seatpost compatibility depends on frame size and is either 25.4 mm or 27.2 mm.

Is the Meybo HSX Carbon compatible with OS20 wheels?

Yes. The frame is compatible with Oversize OS20 wheels.

Can I buy the Meybo HSX Carbon in Singapore?

Yes. The Meybo HSX Carbon is available from RaceBMX.sg in Singapore.

Does RaceBMX.sg ship the Meybo HSX Carbon worldwide?

Yes. RaceBMX.sg ships worldwide, allowing international BMX racers and customers to order the Meybo HSX Carbon from Singapore.

Product Information

Brand: Meybo
Model: HSX Carbon
Product Type: BMX Race Frame
Material: Toray T800 Carbon Fibre
Category: BMX Racing
Configurations: Frame Only / Frame + Fork Kit
Fork: SD Components Carbon V2 on Frame + Fork Kit
Location: Singapore
Shipping: Worldwide
